1. What is Sunduren ?
Sunduren is Acrylic film that KANEKA invented based on our resin and processing technology.
Sunduren has been used for various applications, for example building material, retro reflective sheet, automobile interior and optics. This is because Sunduren has good weath
er-ability, transparency and easy processing.
Our Sunduren is expected to expand business area in response to rapidly changing era.
2. Features of Sunduren
Sunduren has following properties..
- Good weather-ability
- Good transparency
- Good flexibility and crease resistance
- Good crease whitening
- Good haze after heating
- Easy to apply Vacuum forming process
- Good printing property
- Good film surface(very little fisheye)
3. Sunduren for various applications
Sunduren has been used for various applications as follows due to plenty of grade lineup.
Application
- Decorative sheet for building
- Overlay film of Decorative sheet (PVC etc)
Sunduren increases weather-ability, hardness, chemical resistance by laminating our film to PVC, PC, PET etc. - Retro reflective sheet
- Overlay film of Retro reflective sheet (transparency colored film)
We have so many color lineups for this application.
Our film also has good scratch resistance and processing properties. - Auto mobile interior sheet
- For in mold and insert processing.
Sunduren can be used for surface of auto mobile interior through IMD/IMl processing and printed directly.
These hard type grades have very good transparency, easiness to trim.
Properties
| Grade | SD001 | SD014 | SD007 | SD010 | SD009 | |
|---|---|---|---|---|---|---|
| Thickness (μm) ISO/R463 |
53 | 53 | 75 | 125 | 125 | |
| Tensile Strength ISO527-3 |
MD | 46 | 40 | 53 | 45 | 53 |
| (MPa) | TD | 43 | 38 | 44 | 47 | 54 |
| Elongation ISO527-3 |
MD | 114 | 134 | 94 | 56 | 25 |
| (%) | TD | 126 | 143 | 63 | 57 | 25 |
| Pencil Hardness ISO15184 |
2B | 2B | F | F | 2H | |
| Glass-transition temp (℃)ISO3146 |
85 | 96 | 103 | 113 | 114 | |
| 60°gloss(%) JIS-K-7105 |
141 | 144 | 144 | 147 | 147 | |
| Total light transmittance (%)JIS-K-7195 |
93 | 93 | 92 | 92 | 92 | |
| Haze (%) JIS-K-7195 |
0.9 | 0.7 | 0.8 | 0.5 | 0.6 | |
| Feature | Soft | Soft (Clear and Matt) |
Hard (Clear and Color) |
Hard (Clear and Matt) |
Hard (Clear and Matt) |
|
*These data are typical and not warranted.

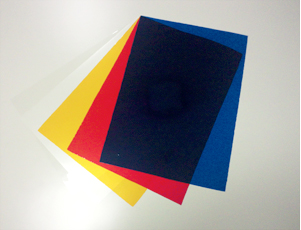

We have several colors of SD007 in order to deal with various requests from customers..
